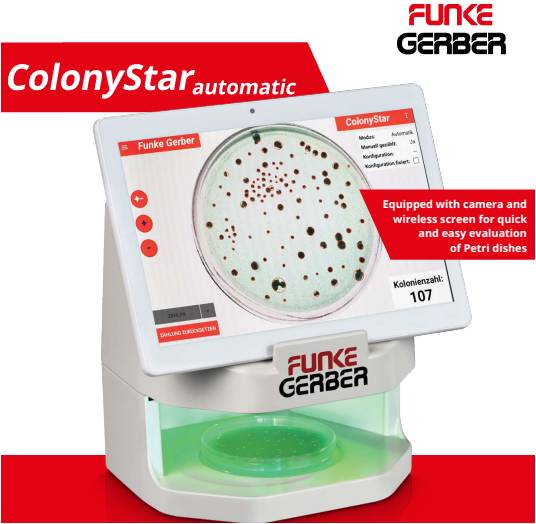

Description
1. Manual Mode:
“Single Shot Mode“.
A colony will be marked and
counted by tapping the selected
colony. It can be canceled by
tapping again the same colony.
2. Assistance mode:
In dialogue with the device
the Petri dish can be evaluated
quickly and easily, i.e.
colonies of the same type are
automatically recorded, marked
and counted when tapping on
one colony.
3. Automatic Mode:
The device is “trained“ with
some Petri dishes and then can
evaluate similar Petri dishes
in seconds, “Fully automatic“.
Storage and sorting of results,
including evaluated images.
Tecnical specifications:
Ordering specifications:
Parameter Range
Input voltage (Power supply of the ColonyStar Scanner) 100 – 240 VAC
Frequency (Power supply ColonyStar Scanner) 50 – 60 Hz
Power max. (Power supply ColonyStar Scanner) 24 W max.
Output voltage (Power supply ColonyStar Scanner) 24 VDC
Input voltage (Power supply Tablet) 100 – 240 VAC
Frequency (Power supply Tablet) 50 – 60 Hz
Power max. (Power supply Tablet) 10 W
Output voltage (Power supply Tablet) 5 VDC
Tablet-Display 10“ (254 mm)
Systems software (Tablet) Android
Protection II
Protection type IP20
Operation temperature 5 °C – + 40 °C
Storage temperature -10 °C – + 60 °C
Dimensions (ColonyStar Scanner) (LxBxH) 186 x 155 x 197 mm
Weight (ColonyStar Scanner + Tablet) 1665 g
Article number Article
8550 ColonyStar automatic , equipped with ColonyStar
Scanner + Tablet Computer Standard
8551 ColonyStar automatic , equipped with ColonyStar
Scanner + Tablet Computer Superior
8552 ColonyStar Scanner
8553 Tablet Computer Standard
8554 Tablet Computer Superior
