Description
VENTICELL
Laboratory Ovens with Forced Air Convention
Thanks to patented system of forced air convention, the VENTICELL®
line guarantees homogenous temperature distribution in all the drying
and heating processes. Higher speed and precision of all the tempering
procedures guarantees economical operation. Suitable mainly for highhumidity materials.
Internal volume: 22, 55, 111, 222, 404, 707 litres
(pass-through version except for the volume22 l)
Temperature range: from 10°C above the ambient temperature up to 250/300°C
Internal chamber: stainless steel DIN 1.4301 (AISI 304)
Clean premises version – on request.
• Intuitive control
• Microprocessor process control Fuzzy logic
• Multi-lingual communication
• Acoustic and visual alarm
• LED indicator of device functionality
• LCD display – 3 inches (7,6 cm)
• Transflective brilliant FSTN display, using COG technology (it is backlit and it uses external
lighting reflection – higher intensity of external light increases the display readability)
• Adjustable display contrast depending on device placement
• Exceptionally wide vision angle
• Large signs on the display visible from afar
• Current values (eg. temperature, humidity for CLIMACELL®, pressure for VACUCELL®) during
the device operation are enlarged for easy readibility
• Resistant foil keyboard with SoftTouch surface (pleasant to touch)
• Mechanic response of keys
• Lit symbols integrated directly in the foil keyboard
• Keyboard lock to block unauthorised access – adjustable by multiple pressing
• Real time programming and cycling (ramps as optional equipment)
• Up to 9 programs, 2 segments for each program and up to 99 cycles.
• USB Host port for flash disc connection for easy export of the relevant data (optional equipment)
• Intuitive control
• Microprocessor process control Fuzzy logic
• Multi-lingual communication
• Acoustic and visual alarm
• LED indicator of device functionality
• LCD display – 5,7 inches (14,5 cm)
• Graphic displaying of a new program
• Control through colour icons
• Touch display lock – protection from unauthorised access by a password
• Multi-level administration of users (corresponding to FDA 21 Part 11)
• Data coding and no-manipulability (according to FDA 21 Part 11)
• Up to 100 programs and up to 100 segments for each program
• Programming of temperature ramps, real time and cycling
• Annual data recording in graphic and numeric form
• Data export in online and offline mode
• Pre-set service programs for prompt diagnostics of failures
• Easy service diagnostics including remote access
• SD memory card, USB Host and interface RS 232 – included as a standard
• Connection: WiFi, USB Device or Ethernet interface with proper IP address for remote data
transfer, control and diagnostics (optional equipment)

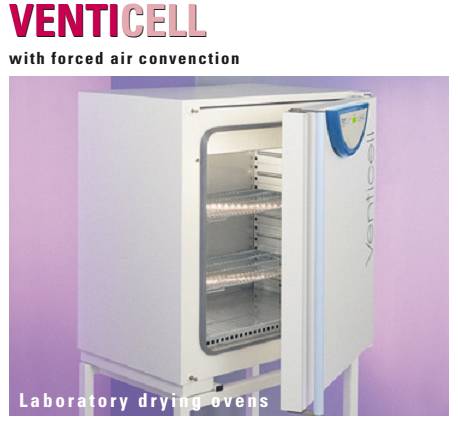

VENTICELL
with forced air convenction
Due to a patented ventilation system the air within
the VENTICELL-chamber is ventilated in a regular
spiral way. This leads to a homogenous temperature
profile throughout the chamber and short heating
times. Operating economy is ensured by higher rate
and precision of heating in laboratories. Especially
suitable for very moist goods.
Volume:
22, 55, 111, 222, 404, 707 litres
Working temperature:
10 °C above ambient temperature
up to 250 °C/300 °C
Interior:
stainless steel, mat. No. 1.4301 (AISI 304)
• 3 adjustable programs
• RS 232 – interface for printer or
PC-communication
• delayed heating start and stop function
• acoustic and visual alarm of error state
• time range 99 hours 59 minutes
• digital safety thermosta
• manual control of the suction flap and the air exhaust
flap
• adjustable ventilation rate 50–100%
Due to a patented ventilation system the air within
the VENTICELL-chamber is ventilated in a regular
spiral way. This leads to a homogenous temperature
profile throughout the chamber and short heating
times. Operating economy is ensured by higher rate
and precision of heating in laboratories. Especially
suitable for very moist goods.
Volume:
22, 55, 111, 222, 404, 707 litres
Working temperature:
10 °C above ambient temperature
up to 250 °C/300 °C
Interior:
stainless steel, mat. No. 1.4301 (AISI 304)
– door window and interior lighting
(excluded volume 22 litres)
– access ports ∅ 25, 50, 100 mm
(∅ 100 mm is not available for 22-litres volume)
– door lock
– left door versions (excluded volume 22 and 707 litres)
– special software WarmComm
– HEPA-filter for installation in air inlet
– potential-free alarm contact
– PT100 sensor
– two-door (passing through) version (possible only by
types with volume 222, 404 and 707 litres)
– temperature range anlargement up to 300 °C
– stainless steel casing of the device
L a b o r a t o r y d r y i n g o v e n s
The versatile standard line with microprocessor control unit
• 6 programs
• chip card system for individual program storage
• RS 232 – interface for printer or
PC-communication
• delayed heating start and stop function
• acoustic and visual alarm of error state
• time range 0–40 years with 1 min-intervals
• digital safety thermostat
• real time
• programming temperature ramps
• heating sequences
• programme cycles
• adjustable ventilation rate 10 to 100 %
• manual control of the air exhaust flap
• keyboard blocking
• door opening control
The high-tech comfort line with multi-functional microprocessor control unit Options
Options
VENTICELL
with forced air convenction
VENTICELL_A
– door window and interior lighting
(excluded volume 22 litres)
– access ports ∅ 25, 50, 100 mm
(∅ 100 mm is not available for 22-litres volume)
– door lock
– left door versions (excluded volume 22 and 707 litres)
– special software WarmComm
– HEPA – filter for installation in air inlet
– two-door (passing through) version (possible only by
types with volume 222, 404 and 707 litres)
– temperature range anlargement up to 300 °C
– stainless steel casing of the device
– PT100 sensor (with representation on a display or PC
