Description

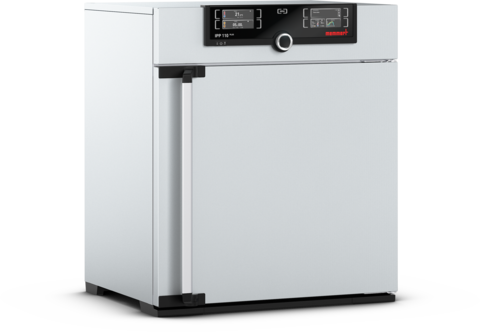

Peltier-cooled incubator
Mikrobiologi, zoologi, makanan, kosmetik atau industri farmasi: inkubator berpendingin hemat energi dengan elemen Peltier memanas dan mendingin dengan mulus dalam satu sistem.
IPP110plus Microbiology, zoology, food, cosmetics or pharma industry: the energy-saving cooled incubator with Peltier elements heats up and cools down seamlessly in one system.
With the help of our model selection, with dimensioned model sketches and extensive technical data for
download, you will find your perfect Peltier-cooled incubator. For large volumes in conjunction with rapid
temperature changes, the Memmert compressor-cooled incubator is recommended. Flexibility and technical
features of our appliances meet all possible needs. Put us to the test!
Temperature
Working temperature range from 0°C to +70°C
Setting accuracy
temperature
0.1 °C
Temperature 2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an
error
Control technology
ControlCOCKPIT TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition
TFT-colour displays.
Language setting German, English, Spanish, French, Polish, Czech, Hungarian
Timer Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
Function SetpointWAIT the process time does not start until the set temperature is reached
Calibration three freely selectable temperature values
adjustable parameters temperature (Celsius or Fahrenheit), programme time, time zones, summertime/wintertime
Ventilation
Convection forced ventilation by Peltier fan
Communication
Documentation programme stored in case of power failure
Programming AtmoCONTROL software on a USB stick for programming, managing and transferring programmes
via Ethernet interface or USB port
Safety
Temperature control over- and undertemperature monitor TWW, protection class 3.3 or adjustable temperature limiter
TWB, protection class 2, selectable on display
AutoSAFETY additionally integrated over- and undertemperature protection “ASF”, automatically following the
setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating
function is switched off in case of overtemperature, cooling function in case of undertemperature
Autodiagnostic system for fault analysis
Alarm visual and acoustic
Heating concept
Peltier Heating and cooling performance distribution by individual control of the Peltier elements in the upper
and lower row
Peltier energy-saving Peltier heating-/cooling system integrated in the rear (heat pump principle)
Page 2/4 | 26.03.2018 | 26.03.2018
Memmert GmbH + Co. KG | Tel. +49 (0) 9122/925-0 | E-Mail info@memmert.com
Memmert Peltier-cooled incubator IPP110plus – en
Standard equipment
Door fully insulated stainless steel door with 2-point locking (compression door lock)
Internals 2 stainless steel grid(s), electropolished
Scope of delivery incl. works calibration certificate for +10°C and +37°C
Door inner glass door
Stainless steel interior
Volume 108 l
Dimensions w
(A) x h(B) x d(C): 560 x 480 x 400 mm
Max. number of internals 5
Max. loading of chamber 150 kg
Max. loading per internal 20 kg
Textured stainless steel casing
Dimensions w
(D) x h(E) x d(F): 745 x 864 x 656 mm
Housing rear zinc-plated steel
Electrical data
Voltage
Electrical load
230 V, 50/60 Hz
approx. 550 W
Voltage
Electrical load
115 V, 50/60 Hz
approx. 550 W
Ambient conditions
Set Up The distance between the wall and the rear of the appliance must be at least 15 cm. The clearance
from the ceiling must not be less than 20 cm and the side clearance from walls or nearby appliances
must not be less than 5 cm.
Ambient temperature 16 ºC to 40 ºC
Humidity rh max. 70 %, non-condensing
Altitude of installation max. 2,000 m above sea level
Overvoltage category II
Pollution degree 2
Packing/shipping data
Transport information The appliances must be transported upright
Customs tariff number 8419 8998
Country of origin Federal Republic of Germany
WEEE-Reg.-No. DE 66812464
Dimensions approx incl.
carton
w x h x d: 830 x 1050 x 800 mm
Net weight approx. 78 kg
Gross weight carton approx. 103 kg
