Description
T8710
Measurement Channels 16
Type J -200…900°C
Type K -200…1370°C
Type T -200…600°C
Type E 0…1000°C
T8720
Measurement Channels 12
Pt100 -200…850°C
Temperature shown in °C, °F or K. Common or individual 1- or 2-point calibration of each channel to any known temperature,
eliminating variations from probe to probe.
Data-logging up to 18000 data sets can be stored manually or at a programmable interval. Download free data acquisition software
from www.consort.be to view, store and edit the measurements in your computer. Stores minimum/maximum readings for each
channel.
Display Bright LCD screen with white back-light for better readability. The interactive LCD screen provides step by step instructions i
the language of your choice (English, Dutch, French, German).
Hold function allows to freeze the display
Alternating mode enables an automatic sequential view of all channels and allows to send the measurements simultaneously to a
printer or computer.
Alarms. Individual high/low limits for each channel alerts the user and can close a relay when readings stray outside limits.
2 relays that can close or open upon the following events:
– Alarm
– Low alarm
– High alarm
– Measurement active
– Measurement inactive
– Stand-by
GPL report can be shown on the display or sent to the digital port.
Galvanic isolated USB interface eliminates ground loop effcts when connected to a PC.
Automatic continuing with the measurements or data-logging after a power failure.
Description
Overview
T8710 and T8720 are our multi channel thermometers. Each has it’s own speciality:
• T8710 can use up to 16 thermocouples (J,K,T and E type) and is ideal for long distance measurements requiring a short
response time with a reasonable accuracy.
• T8720 can use up to 12 Pt100 probes and is ideal for highly accurate measurements at short or medium distances
Various features are provided in each instrument. Both USB and RS232 are provided for communication with a PC. A printer can be
attached directly to the RS232 interface.
T8710
Specif cations
TEMPERATURE Range, Type J -200…900°C (-328…1652°F)
Range, Type K -200…1370°C (-28…2498°F)
Range, Type T -200…600°C (-328…1112°F)
Range, Type E 0…1000°C (32…1832°F)
Resolution <1000°: 0.1°C (0.1°F)
>999.9°: 1°C (1°F)
Accuracy 0.5% ±0.5°C (±1°F)
RJC Error 0.05°C/°C
Calibration 1…2 points
Channels 16
INPUTS terminal blocks
for 16 thermocouples
CALIBRATION GLP Protocol ü
DISPLAY LCD 128×64 pixels
Alternating ü
Hold Function ü
Selectable Resolution ü
Real Time Clock ü
Languages EN, NL, FR, DE
COMMUNICATION Interface with computer USB
RS232, baud rate 300…19200 b/s
Printer ü
DATA-LOGGING Values 18000 + date/time
Manual ü
Timed ü
Interval 4…9999 s
ALARM Relays 2, max. 50 V/200 mA
SECURITY Identification Number ü
Password Protection ü
AMBIENT
CONDITIONS
Temperature 0…40°C
Humidity 0…95%, non condensing
POWER SUPPLY Mains 90…250 VAC, 50/60 Hz
DIMENSIONS WxDxH 26x18x9 cm
WEIGHT Meter 1 kg

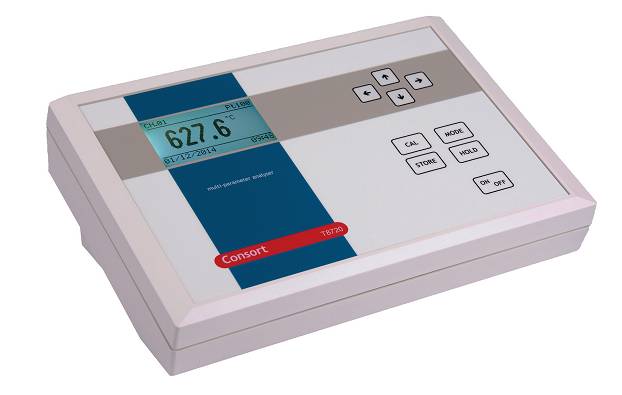

T8720
TEMPERATURE Range, Pt100 -200…850°C (-328…1562°F)
Resolution 0.1°C (0.1°F)
Accuracy 0.1% ±0.3°C (±0.5°F)
Calibration 1…2 points
Channels 12
INPUTS terminal blocks
for 12 Pt100 probes
CALIBRATION GLP Protocol ü
DISPLAY LCD 128×64 pixels
Alternating ü
Hold Function ü
Selectable Resolution ü
Real Time Clock ü
Languages EN, NL, FR, DE
COMMUNICATION Interface with computer USB
RS232, baud rate 300…19200 b/s
Printer ü
DATA-LOGGING Values 18000 + date/time
Manual ü
Timed ü
Interval 4…9999 s
ALARM Relays 2, max. 50 V/200 mA
SECURITY Identification Number ü
Password Protection ü
AMBIENT
CONDITIONS
Temperature 0…40°C
Humidity 0…95%, non condensing
POWER SUPPLY Mains 90…250 VAC, 50/60 Hz
DIMENSIONS WxDxH 26x18x9 cm
WEIGHT Meter 1 kg
