Description
|
Product Features
|

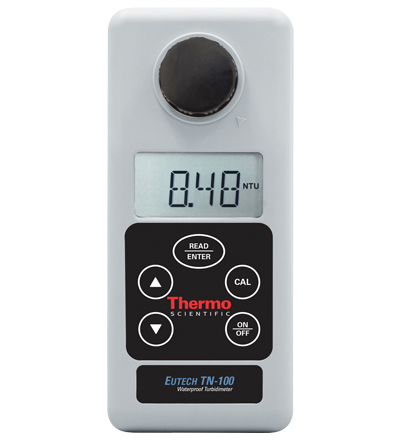

The microprocessor-based waterproof TN-100 meter is an easy-to-use turbidimeter that meets the rigor of rugged field applications. It is a “must -have” for anyone monitoring turbidity on the go. Using an Infrared light source, it delivers laboratory accuracy with a resolution of 0.01 NTU across an extended range of up to 20 NTU (Nephelometric Turbidity Units).
Specifications
|
Product Specification |
Description |
| Measuring Parameter | Turbidity |
| Highlights | Light weight, IP67 waterproof meter |
| Principle | Nephelometric non-ratio / ISO 7027 and DIN 27027 compliant |
| Range | 0 to 2000 NTU |
| Automatic Range Selection | 0.01 to 19.99 NTU; 20.0 to 99.9 NTU; 100 to 2000 NTU |
| Resolution | 0.01 NTU (0 to 19.99 NTU); 0.1 NTU (20.0 to 99.9 NTU); 1 NTU (100 to 2000 NTU) |
| Accuracy | < 0.1 NTU for 0.02 NTU standard; ±2 % of reading ±1 digit for 0 to 500 NTU; ±3 % of reading ±1 digit for 501 to 2000 NTU |
| Repeatability | < or = ±1 % of reading |
| Calibration | Up to 4 points |
| Calibration Standards | 0.02 NTU, 20.0 NTU, 100 NTU, 800 NTU |
| Response Time | < 6 secs for full step change |
| Sample Volume | 10 mL |
| Light Source | Infrared-emitting diode (850 nm wavelength) |
| Operating Temperature Range | 0 to 50 ºC |
| Sample Temperature Range | 0 to 50 ºC |
| Enclosure Type & Rating | ABS plastic & IP67 rated |
| Power | 4 x 1.5 V ‘AAA’ alkaline batteries (> 1200 readings) |
| Certifications/Compliance | FCC part 15 class A, TUV 3 in 1, CE, RoHS |
| Dimensions (LxWxH) | Meter: 15.5 x 6.8 x 4.6 cm Boxed: 35.5 x 16.5 x 10.5 cm |
| Weight | Meter: 200 g Boxed: 1,160 g |
Order Information
|
Order No. |
Item |
| ECTN100IR | Waterproof TN-100 handheld turbidimeter with set of 4 calibration standards (800, 100, 20.0 & 0.02 NTU), set of 7 sample vials, lint-free cloth, silicone oil, batteries, and hard carrying case |
| ECTN100NOSTDS | Waterproof TN-100 handheld turbidimeter, set of 7 sample vials, lint-free cloth, silicone oil, batteries, and hard carrying case |
| TN100CALKIT | Calibration kit set – standard solutions (0.02, 20.0, 100, 800 NTU) 60 mL each and (4) vials |
| ECTN100CUVKIT | Pack of 3 cuvettes (vials) |
| ECTN100CUVKIT4 | Pack of 4 cuvettes (vials) |
| ECSILICONEOIL | Silicone oil (10 mL) |
| 32X366401 | Replacement light shield cover |
| 67X357201 | Replacement cloth |
