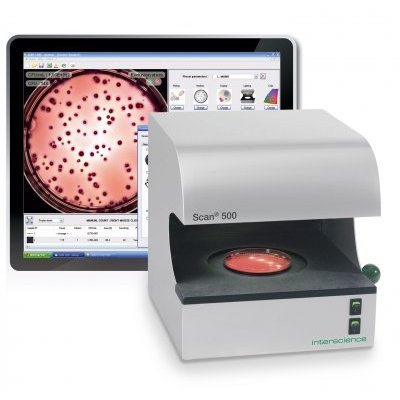

Scan 500 Automatic colony counter Ref. 436 000 made in france

Description

1. HIGH RESOLUTION AND PERFORMANCE
 Minimum colony size: 0.1 mm
 1000 colonies CFU detected in 1 second
 Live image (zoom x28)
 Counts 30 dishes in 5 minutes (in real conditions with presettings)

2. COUNTS ON:

3. SOFTWARE EFFICIENCY
 All functions in 1 window
 Automatic optimization of the contrast, luminosity and sensitivity
 Automatic corrections of the agar defects
 Automatic separtion of confluent colonies
 Automatic elimination of counting grids
 Cross on each counted colony
 Polygonal exclusion areas
 Automatic adjustment of the counting area
 Automatic settings for more than 20 pres-set media (PCA/TSA, MRS, VRBL, TBX, TSC, Baird Parker, GVPC, L.Mono, YM and more…)

4. INHIBITION ZONE, AGAR WELL
 Rapid detection: up to 8 antibiotic sensitivities in 1 click
 Inhibition zones and agar wells can be manually added or deleted
 Built-in antibiotic database (CA-SFM, French Society of Microbiology)
 Precision of inhibition zone measurement: 0.3 mm
 Precision of agar well measurement: 0.3 mm

5. FULL TRACEABILITY
 Harmonization of the results within a team
 Automatic archiving and printing of data: pictures, comments & results
 External traceability (Session saved, Excel™, PDF, JPEG, BMP, Scan printed report)
 Internal traceability (Barcode, file archive, LIMS connection)
 Securization of the sessions (Compliance with CFR 21 part 11: system securization, operational controls and documentation management)

6. EXCELLENT REPRODUCIBILITY AND REPEATABILITY
 GLP (Good laboratory Practice)
 CFR 21 Part 11

Scan® SOFTWARE
Scan^® automatic colony counters use an exclusive software developped by INTERSCIENCE: evolutive, user-friendly and powerful.

There are numerous advantages in using Scan^® counting software:
 Only one clic to count
 Only one setting cursor
 Traceability: automatic saving of data, Excel™ export

To try the demo version with your samples, please identify below or register here
  Download Scan^® demo software

1. VISUALISATION WINDOW
Detected colonies are highlighted and marked with a cross.

2. PARAMETERS WINDOW
Only one cursor to optimize counting. customizable settings adaptable to any kind of agar.

3. RESULTS WINDOW
All previously recorded data can be checked anytime.

EASY DATA EXPORT
Scan software provides easy ways to export quickly your results:
 Work sessions saving
 PDF export
 JPEG, BMP export
 Results exported to Excel™
 Scan^® printed report

EXAMPLE OF A SCAN^® PRINTED REPORT
Check in a glance images before and after counting, complete sample information, comments and results.

Technical specifications of the model.
Scroll down for the comparison with other models of the range.

	Scan® 500
Reference	436 000
Camera	CMOS color camera
Lens	M12 lens
Digital zoom	x 28
Resolution	1 megapixels
Counting time	1000 colonies per second
Minimum size colony	0.1 mm
Lighting	Long-life white LEDs / Dark Field
Lighting system	Automatic: 6 combinations, top and/or bottom light white or black background
Counting	Automatic, with manual control
Counting on Petri dishes	55-90 mm
Counting on pour, surface, Spiral® and circle plated dishes
Counting on chromogenic dishes
Inhibition zone reader
Results /Data export	Recountable Scan® session, PDF report, JPEG, PNG, BMP, Excel™
Color detection	7 colors on the same dish
LIMS/SIL connection
USB connection
Languages	English, French, Japanese, Chinese, Russian, Spanish, German
Dimensions (w x d x h)	28,5 x 26,5 x 29 cm
Weight	8,4 kg
Voltage	100-240 V ∼ 50/60 Hz
Power	20 W
Processor	Intel (recommended) AMD Phenom or better
Operating systems	Windows™ 7 Service Pack 1 or Windows™ 8 or 10
Frequency	2 Ghz or superior
RAM	3 Go or better
Graphic card	AMD or NVIDIA (chipsets are not recommended)
Equipment	USB 2.0 port / CD-ROM reader
Screen	1280 X 1024 pixels and more
Computer	Desktop computer recommended
Hardware	Stainless steel
Software update (after registration)	3 years
Guarantee (after registration)	3 years

Delivered with : Scan® software CD-ROM/ Connection cables / 3 control dishes / User’s manual / IQ/OQ/PQ guidelines

Comparison with other models of the range

	Scan® 300	Scan® 500	Scan® 1200	Scan® 4000
Reference	436 300	436 000	437 000	438 000
Camera	CMOS color camera		HD CCD color camera	Ultra HD CCD color camera
Lens	M12 lens		HD japonese lens	Ultra HD japonese lens
Digital zoom	x 28			x 69
Resolution	1 megapixels		1.2 megapixels	5 megapixels
Counting time	1000 colonies per second
Minimum size colony	0.1 mm		0.05 mm
Lighting	Long-life white LEDs / Dark Field			White LED Dome
Lighting system	Automatic : 6 combinations, top and/or bottom light white or black background			Automatic : 7 combinations, top and/or bottom light white or black background
Counting	Automatic with manual control
Counting on Petri dishes	55-90 mm			Round and square Petri dishes 55-150 mm
Counting on pour, surface, Spiral® and circle plated dishes
Counting on chromogenic dishes	–
Inhibition zone reader	–
Counting on PetriFilm™	–
Counting on Compact Dry™	–
Counting on filtration membranes	–
Automatic detection of paper disks, agar wells, peni-cylinders	–
Results /Data export	Recountable Scan® session, PDF report, JPEG, PNG, BMP, Excel™
Color detection	–	7 colors on the same dish
LIMS/SIL connection
USB connection
Languages	English, French, Japanese, Chinese, Russian, Spanish, German
Dimensions (l x p x h)	28,5 x 26,5 x 29 cm		28,5 x 26,5 x 37,5 cm	47 x 47 x 64 cm
Weight	8,4 kg		9,4 kg	25 kg
Voltage	100-240 V ∼ 50/60 Hz
Power	20 W			140 W
Operating system	Windows™ 7 Service Pack 1 or Windows™ 8 or 10
Processor	Intel (recommended) AMD Phenom or better			Intel (Quad-core recommended) Intel i5 or i7 or AMD FX 6000 and superior
Frequency	2 Ghz or superior			2,4 Ghz or superior
RAM	3 Go or better			4 Go or better
Graphic card	AMD or NVIDIA (chipsets not recommended)
Equipment	USB 2.0 port / CD-ROM reader
Screen	1280 X 1024 pixels and more
Computer	Desktop recommended
Hardware	Stainless steel
Software update (after registration)	3 years
Guarantee (after registration)	3 years
